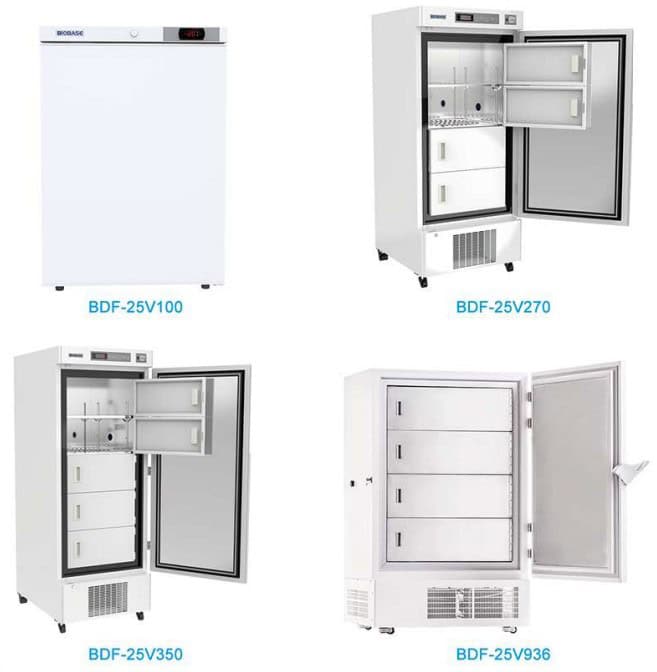

| Model |

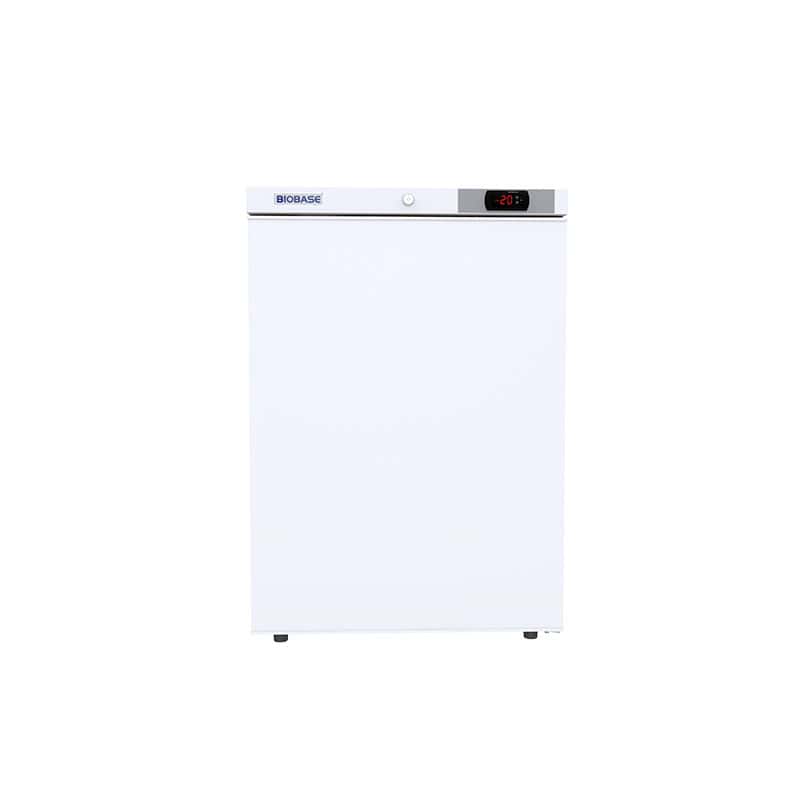

BDF-25V100 |
BDF-25V270 |
BDF-25V350 |

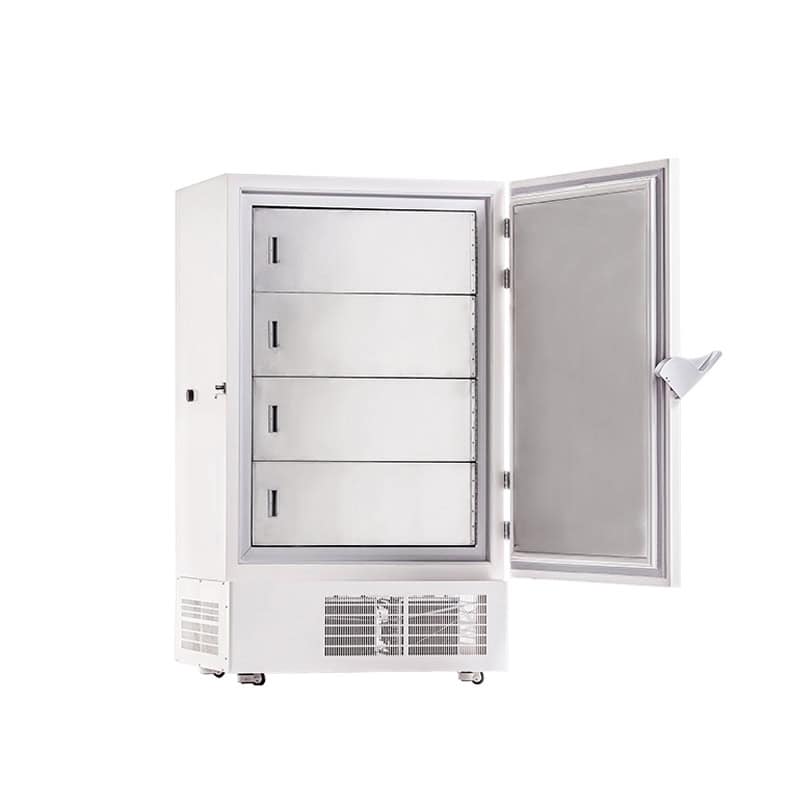

BDF-25V936 |
| Capacity |
100L |
270L |
350L |
936L |
| Temp. Range |
-10~-25°C |
| Temp. Accuracy |
1°C |
0.1°C |
| Temp. Uniformity |
≤3°C |
≤5°C |
| Temp. Stability |
≤3°C |
≤5°C |
| Recovery Time |
≤15min (Recover to -22°C in an ambient temp. of 25°C) |
| Cooling Time |
≤1.5h (Cool down to -25°C in an ambient temp. of 25°C) |
150min |
| Control System |
Microprocessor Control |
| Display |
LED |
| Alarm |
High/Low Temperature Alarm,
Power Failure Alarm,
Thermostat Fault Alarm,
Door Switch Alarm |
High/Low Temperature Alarm,
Thermostat Fault Alarm,
Door Switch Alarm,
Power Failure Alarm (8h) |
High/Low Temperature Alarm,
Sensor Fault Alarm,
Thermostat Fault Alarm,
Power Off Alarm,
Door Opening Alarm,
Ambient Temperature Alarm,
Condenser Fault Alarm,
Filter Check Alarm,
Abnormal Voltage Alarm,
Low Battery Power Alarm |
| Refrigeration Type |
Direct-cooling |
| Refrigerant |
R600a / 48g |
R290 / 65g |
R290 / 85g |
R404A / 320g |
| Compressor |
International Famous Brand Compressor / 1 |
Imported SECOP Compressor / 2 |
| Condenser & Evaporator |
Side-panel Bundy Tube Condenser;
Wire-on-Tube Bundy Tube Evaporator |
Wire-on-Tube Bundy Tube Condenser;
Built-in Coil Copper Tube Evaporator |
Wire-on-Tube Bundy Tube Condenser;
Built-in Coil Copper Tube Evaporator |
Finned Copper Tube Condenser;
Built-in Coil Copper Tube Evaporator |
| Defrost |
Manual Defrost |
| Construction |
Polyurethane Cyclopentane Foam |
| Material |
Internal Material: HIPS |
Internal Material: 304 Stainless Steel |
| External Material: Precoated Steel Plate |
External Material: Sprayed Steel Plate |
| Door |
Outer Door: Cyclopentane Foam Door ×1
Interior Door: None |
Outer Door: Cyclopentane Foam Door ×1
Interior Door: Sprayed Steel Plate Door ×4 |
Outer Door: Cyclopentane Foam Door ×1
Interior Door: Sprayed Steel Plate Door ×5 |
Outer Door: Sprayed Steel Plate Door ×1
Interior Door: 304 Stainless Steel Door ×4 |
| Consumption |
100W |
332W |
312W |
1000W |
| Power Supply |
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) |
| Casters |
No |
Yes |
| Shelf / Drawer |
3 (Drawer) |
3 |
4 |
3 |
| Standard Accessory |
Test Hole |
Test Hole, USB Interface |
Test Hole |
Test Hole |
| Optional Accessory |
Temperature Recorder |
Temperature Recorder, RS485, Printer |
Temperature Recorder,
Liquid Nitrogen Backup System,
Remote Alarm Interface,
USB Interface |
| Internal Size (W×D×H) |
410×440×630mm |
520×567×1013mm |
520×567×1266mm |
1000×700×1335mm |
| External Size (W×D×H) |
600×620×870mm |
690×744×1631mm |
690×744×1885mm |
1304×1000×2017mm |
| Package Size (W×D×H) |
640×660×1060mm |
810×860×1820mm |
840×860×2050mm |
1355×1000×1980mm |
| Net Weight |
37.5kg |
115kg |
123kg |
378kg |
| Gross Weight |
46kg |
132kg |
145kg |
413kg |
