ยี่ห้อ:FAITHFUL
รุ่น:101-0AB 101-1AB 101-2AB 101-3AB

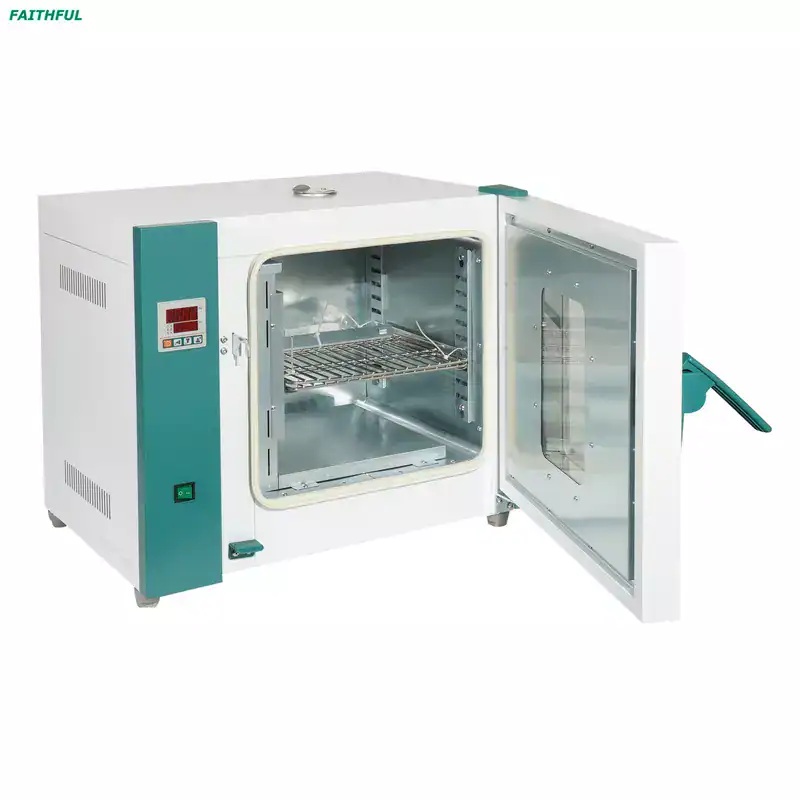

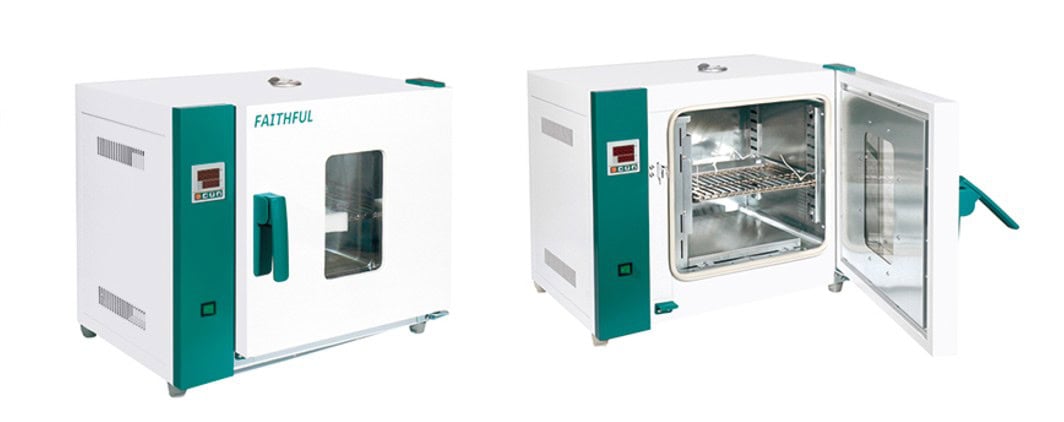

Horizontal Drying Oven Forced convectionตู้อบลมร้อนแนวนอน ยี่ห้อ FAITHFUL รุ่น 101-0AB 101-1AB 101-2AB 101-3AB
Timer 0~9999min (with timing function) / Temp. Range RT+10~250°C
101-0AB ขนาด 43L
101-1AB ขนาด 71L
101-2AB ขนาด 136L
101-3AB ขนาด 225L
Horizontal Drying Oven Forced convectionตู้อบลมร้อนแนวนอน ยี่ห้อ FAITHFUL รุ่น 101-0AB 101-1AB 101-2AB 101-3AB
| Model | 101-0AB | 101-1AB | 101-2AB | 101-3AB |
|---|---|---|---|---|
| Cycle Mode | Forced convection | |||
| Temp. Range | RT+10~250°C | |||
| Temp. Resolution Ratio | 0.1°C | |||
| Temp. Motion | ±1°C | |||
| Temp. Uniformity | ±2.5% | |||
| Inner Chamber | High quality stainless steel | |||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||
| Insulation Layer | High quality rock wool board (with CE) | |||
| Heater | Stainless steel electric heating tube | |||
| Power Rating | 1.2kW | 1.6kW | 2.3kW | 3.0kW |
| Exhaust Hole | Φ35mm top (with test hole) | |||
| Temp. Control Mode | Two temperature section PID intelligent | |||
| Temp. Setting Mode | Touch button setting | |||
| Temp. Display Mode | LED digital display | |||
| Timer | 0~9999min (with timing function) | |||
| Operation Function | Fixed temperature, timing operation, auto stop | |||
| Additional Function | Sensor deviation correction, overshoot self-tuning, parameter locking, memory | |||
| Sensor | PT100 | |||
| Safety Device | Over temperature alarm | |||
| Volume | 43L | 71L | 136L | 225L |
| Max Shelf Number | 9 | 13 | 17 | 25 |
| Load Per Rack | 15kg | |||
| Shelf Space | 25mm | |||
| Current Rating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/13.6A |
| N.W/G.W (kg) | 40/46 | 45/50 | 62/68 | 77/96 |
