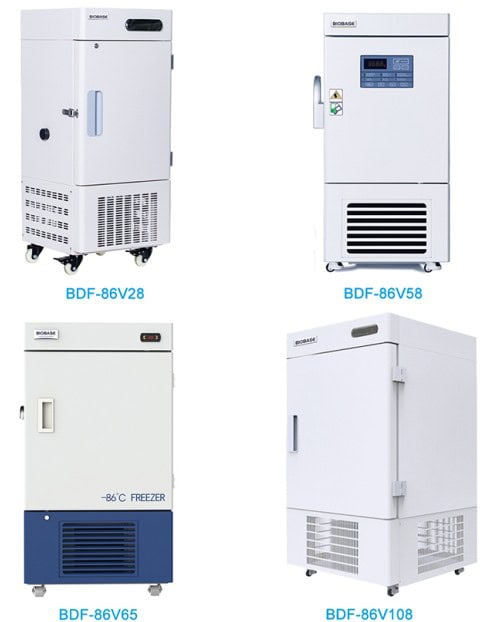

| Model |

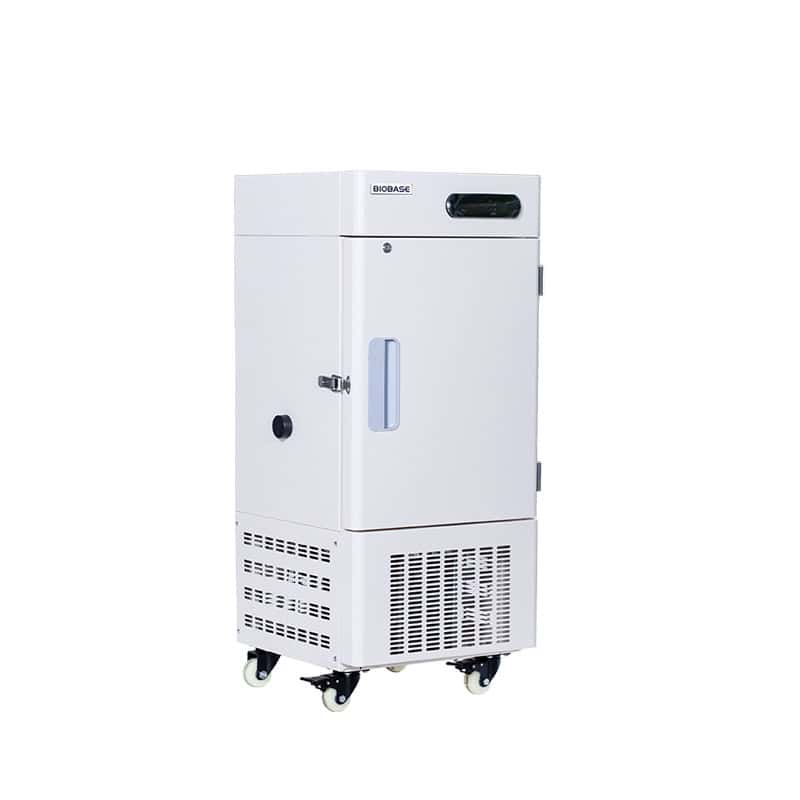

BDF-86V28 |
BDF-86V58 |

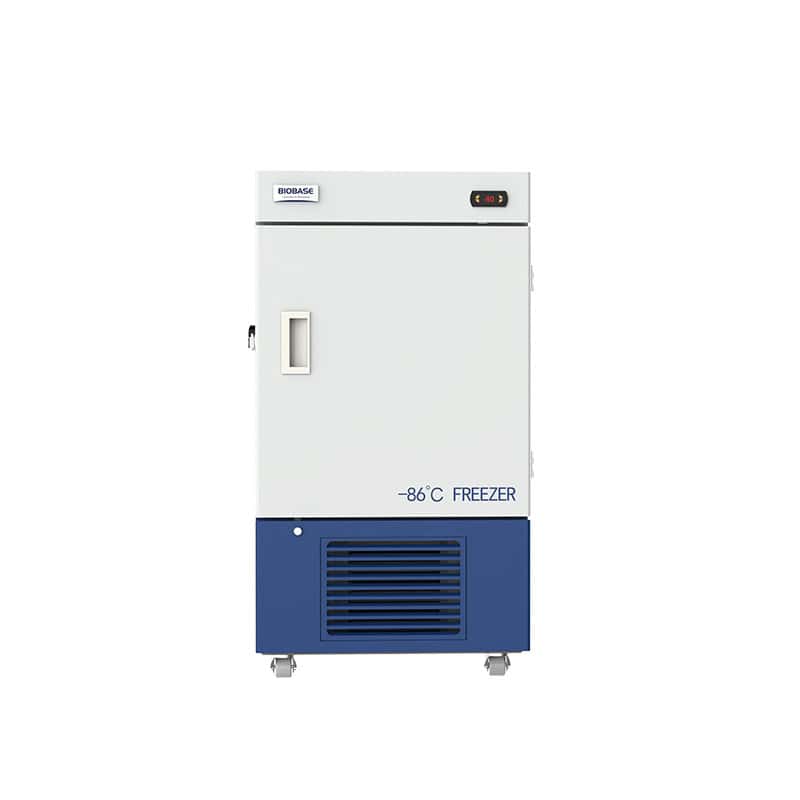

BDF-86V65 |

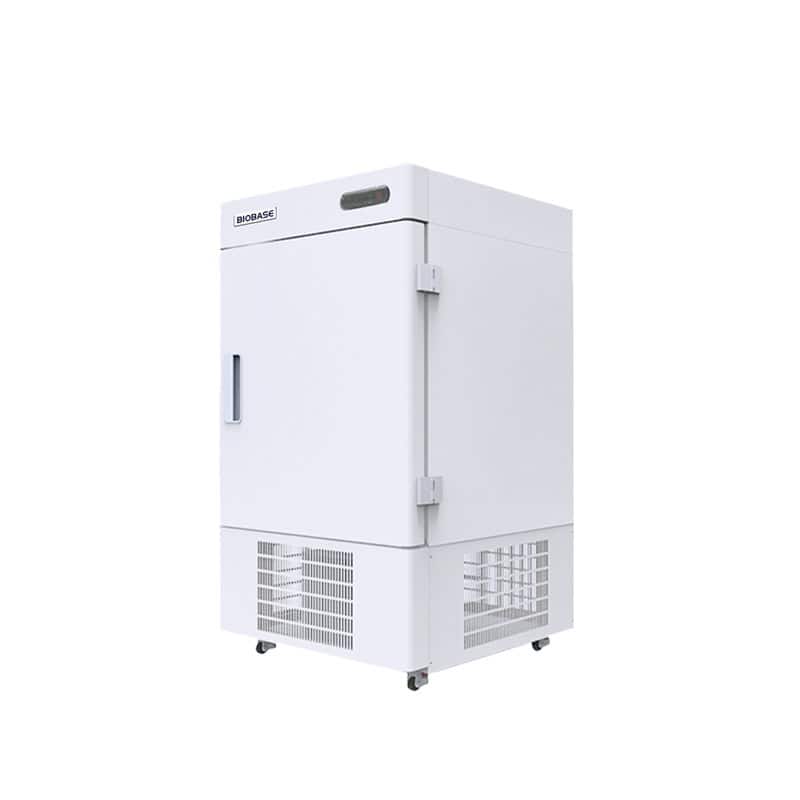

BDF-86V108 |
| Capacity |
28L |
58L |
65L |
108L |
| Temp. Range |
-40 ~ -86℃ |
| Temp. Accuracy |
0.1℃ |
| Temp. Uniformity |
±3℃ |
±4℃ |
±3℃ |
±3℃ |
| Temp. Stability |
≤6℃ |
| Recovery Time |
20 min |
25 min |
≤15 min |
20 min |
| Cooling Time |
120 min |
160 min |
≤240 min |
120 min |
| Control System |
Microprocessor Control |
| Display |
LED |
| Alarm |
High and low temperature alarm, sensor failure alarm |
High and low temperature alarm, sensor fault alarm, power off alarm, door opening alarm, ring temperature alarm, condenser fault alarm, filter check alarm, abnormal voltage alarm, low battery power alarm |
High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm (72h) |
High and low temperature alarm, sensor failure alarm |
| Refrigeration Type |
Direct-cooling |
| Refrigerant |
R404A/R23, 140g |
R4001, 200g |
R600a/R1150/R14, 150g |
R404A/R23, 190g |
| Compressor |
International Famous Brand Compressor / 1 |
| Condenser & Evaporator |
Copper tube finned type; built-in coil type |
Copper tube evaporator; finned condenser |
Micro channel condenser; built-in coil type |
Copper tube finned type; built-in coil type |
| Defrost |
Manual Defrost |
| Construction |
Polyurethane Cyclopentane Foam |
| Material |
Internal Material: 304 Stainless Steel |
| External Material: Sprayed Steel Plate |
| Door |
Outer door: cyclopentane monomer foam outer door ×1
Interior door: stainless steel door ×1 |
Outer door: sprayed steel plate door ×1
Interior door: stainless steel door ×2 |
Outer door: cyclopentane monomer foam outer door ×1
Interior door: cyclopentane monolithic foaming, stainless steel door ×1 |
Outer door: cyclopentane monomer foam outer door ×1
Interior door: stainless steel door ×2 |
| Consumption |
400W |
442W
Apparent Power: 550VA |
540W |
480W |
| Power Supply |
AC 220V, 50Hz (Standard); 220V, 60Hz; 110V, 50/60Hz (Optional) |
AC 220V, 50Hz (Standard); 110/220V, 60Hz (Optional) |
| Casters |
Yes |
| Shelf |
1 |
| Standard Accessory |
Test hole |
Remote alarm function interface, test hole, USB interface |
Test hole |
Test hole |
| Optional Accessory |
Temperature recorder |
Temperature recorder, RS485, liquid nitrogen backup system |
USB interface, RS485, temperature recorder, liquid nitrogen backup system |
Temperature recorder |
| Internal Size (W×D×H) |
270×265×400 mm |
330×453×410 mm |
360×455×395 mm |
460×460×510 mm |
| External Size (W×D×H) |
505×520×1165 mm |
635×757×1212 mm |
660×715×1165 mm |
700×730×1260 mm |
| Package Size (W×D×H) |
535×575×1290 mm |
730×860×1420 mm |
765×825×1350 mm |
765×815×1395 mm |
| Net Weight |
71 kg |
112 kg |
92 kg |
107 kg |
| Gross Weight |
90 kg |
146 kg |
134 kg |
133 kg |
